plastikcam.com       Lomo Sprocket Rocket


The Lomo Sprocket Rocket is a special panorama fun camera. It makes 1:3 panorama pictures on 35mm film, it has a 106 angle of view. It has a panoramic finder, 2 apertures, a hot shoe and a tripod socket. As the shutter dosn't have to be cocked, you can make double exposures and there is a B shutter setting.

Its main features are:

30mm ultra wide angle lens on 24x72mm format (33x72mm with sprockets), 2 apertures, F10.8 or F16, 2 focus zones, 0.6m -1m, 1m -
Shutter 1/100, B
Size 156x83x67,  Weight 234 gr. with cap
Hot shoe, tripod socket

jpg/lomo_sprocket_rocket_IMG_4473.JPG
Camera, instructions, booklets and frame.

jpg/lomo_sprocket_rocket_IMG_4395.JPG
Camera with cap.

jpg/lomo_sprocket_rocket_IMG_4402.JPG
Camera front. Lens.

jpg/lomo_sprocket_rocket_IMG_4397.JPG
Camera back. Film type window. Viewer.

jpg/lomo_sprocket_rocket_IMG_4399.JPG
Camera top. Film rewind,  advance and film counter window, hot shoe and film adavance knob. On the lens barrel: shutter setting and
shutter release. Turning the lens barrel sets the 2 focus zones.

jpg/lomo_sprocket_rocket_IMG_4408.JPG
Camera top again. Film advance is not automatically stopped. To advance the film, you have to watch the first little window. There should be a little white dot visible. You have to advance until the next white dot appears. The film counter will move to the next number. On a 36 exp. film you will get about 17 exposures.

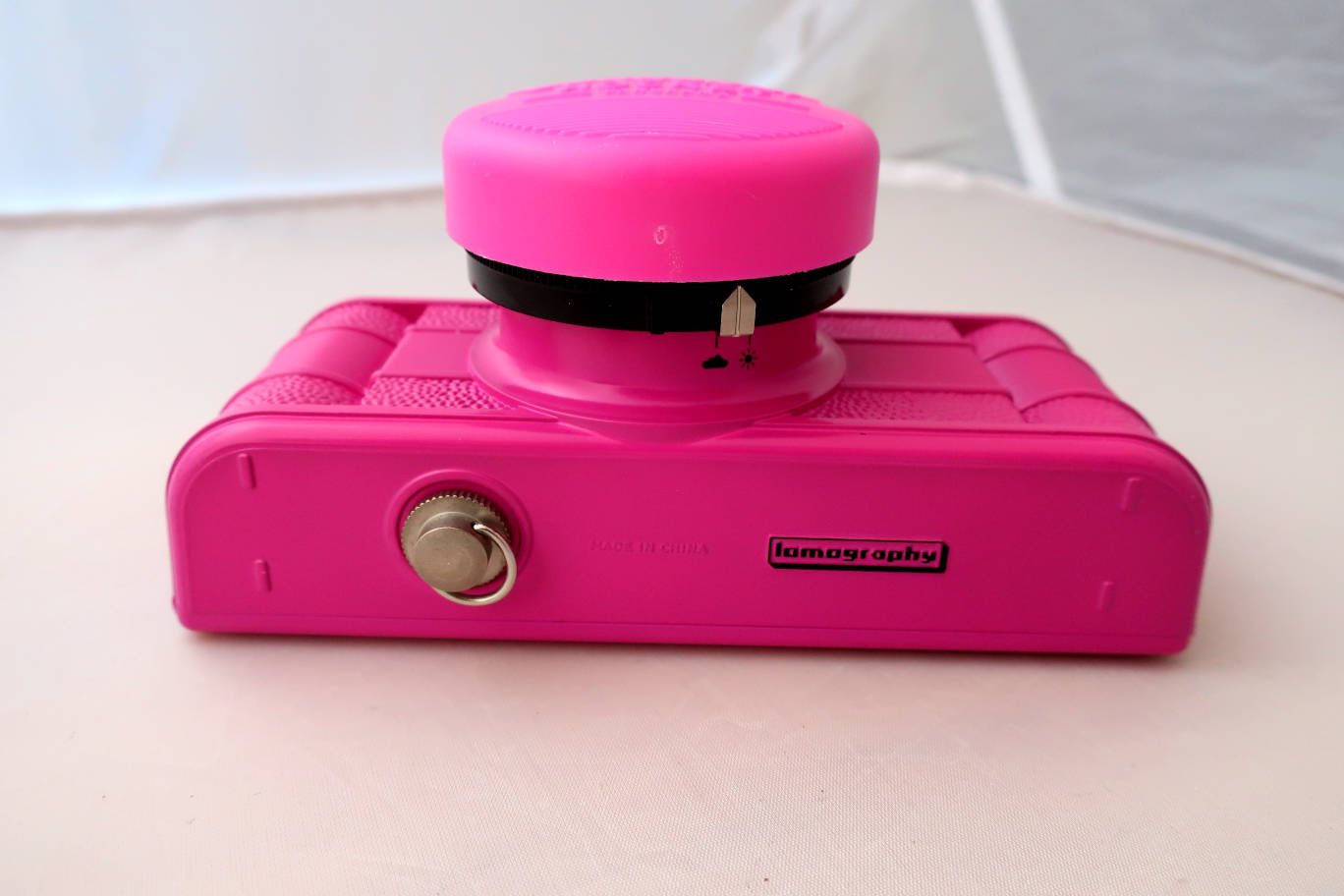

jpg/lomo_sprocket_rocket_IMG_4396.JPG
Camera bottom. There is a screw in the tripod socket to which you can attach a strap. On the lens barrel: aperture setting.

jpg/lomo_sprocket_rocket_IMG_4405.JPG
Camera back open. It's only clipsed.

jpg/lomo_sprocket_rocket_IMG_4407.JPG
Film compartment without extra frame as most users prefer. So the sprockets of the film will be exposed as well.

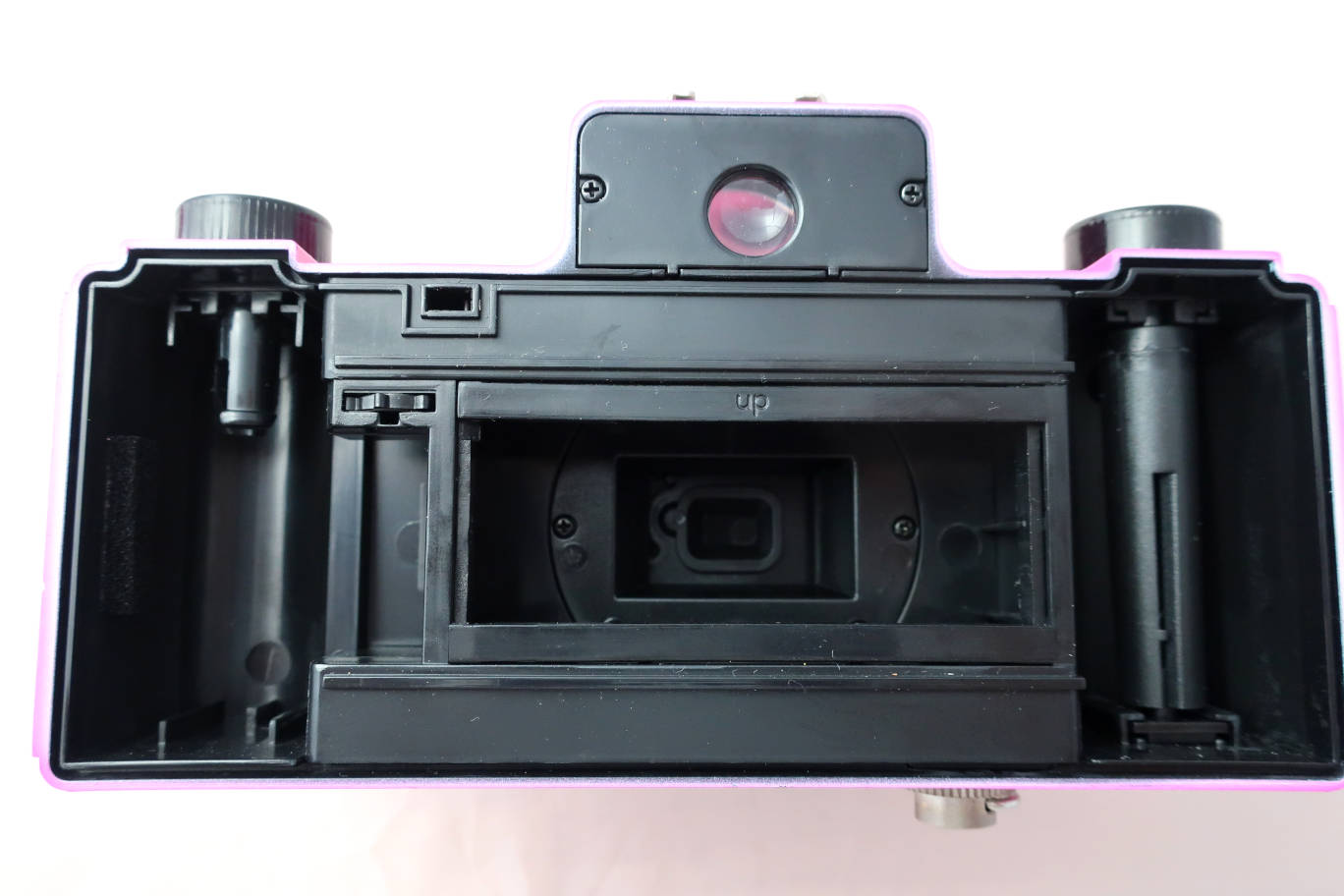

jpg/lomo_sprocket_rocket_IMG_4474.JPG
With a frame inserted, you will have a normal panoramic photo.

Using the Lomo Sprocket Rocket camera is easy. As there is only one shutter speed, you have to choose your film depending on the weather conditions. On bright days ISO 200 is fine, on dull days ISO 400 is better. 2 aperture settings will help as well. Modern film is quite flexible, so you will have usable results. Inside or at night you'll have to use the B mode or a flash.

It's a toy or fun camera, all plastic, but it's funny. It gives real panoramic pictures with or without the sprocket area. A good part of the other cheap "panoramic" cameras use a frame on an ordinary 24x36 photo. This one is different, you get a real 24 (33)x72mm photo. Scannig film with the sprockets can be a bit difficult. There are the Lomo Digitaliza scan frames which can do a very good job.
