plastikcam.com       Diana Instant Square

The
Diana Instant Square is a new Diana Camera, based on the Diana F+, but completely re-designed around the Instax Square film. It's an Instax only camera, no adaption to roll film possible. It has automatic motorized ejection, there is a switch for multiple exposure. The rest is basic Diana feeling.

Its main features are:

75mm simple plastic menikus lens, F11, F19, F32, 3-zone focus 1-2m, 2-4m, 4m-. Pinhole setting F150
Shutter 1/100, B
Size 130x155x105 including finder,  Weight 440 gr. with film and batteries
Motorized ejection, for Fuji Instax Square Film, takes 4 AAA batteries, hook to block shutter in B position, flash accessories, graphic frame

jpg/diana_instant_square_IMG_1119.JPG
The box.

jpg/diana_instant_square_IMG_1121.JPG
What's in the box. Camera, finder, strap, a hook to block the shutter lever in B mode, instructions, a Lomo book and 2 flash adapters, one for the Diana flashes, one with a hot shoe.

jpg/diana_instant_square_IMG_1126.JPG
A Diana glass lens, promoted with the camera. On the instruction booklet: graphic frame to be installed in the film chamber prior to film loading. If you paint on it or put stickers, these will be projected on the photos.

jpg/diana_instant_square_IMG_1127.JPG
Camera front. The lens has a 30mm filter thread. Selfie mirror in the frame of the old viewfinder. Instax square viewfinder on top.


jpg/diana_instant_square_IMG_1134.JPG
Camera back. Film presence window near the top, film counter window with green lamp for camera on and batteries o.k., flashes when battery low.

jpg/diana_instant_square_IMG_1129.JPG
On/off switch with multiple exposure setting as well..

jpg/diana_instant_square_IMG_1131.JPG
Bottom. Tripod socket and battery compartment, takes 4 AAA batteries. On the lens barrel: 4 aperture settings, cloudy (f 11), sunny to cloudy (F 18), sunny (F 32) and pinhole (F 150)

jpg/diana_instant_square_IMG_1132.JPG
Camera top. Ejection slot. Flash socket, new style. Adapters for ordinary flashes are included. On the lens barrel: N (normal shutter, 1/100s) and B setting. To the right: shutter lever.

jpg/diana_instant_square_IMG_1136.JPG
Camera with the 75mm glass lens, the mount is compatible with all Diana lenses.

jpg/diana_instant_square_IMG_1141.JPG
The Diana lenses. First row from left: Close-up lens (for 55mm), 55mm, 38mm, 20mm fisheye, second row: 110mm soft tele and original 75mm, on the camera: 75mm glass lens.

jpg/diana_instant_square_IMG_1144.JPG

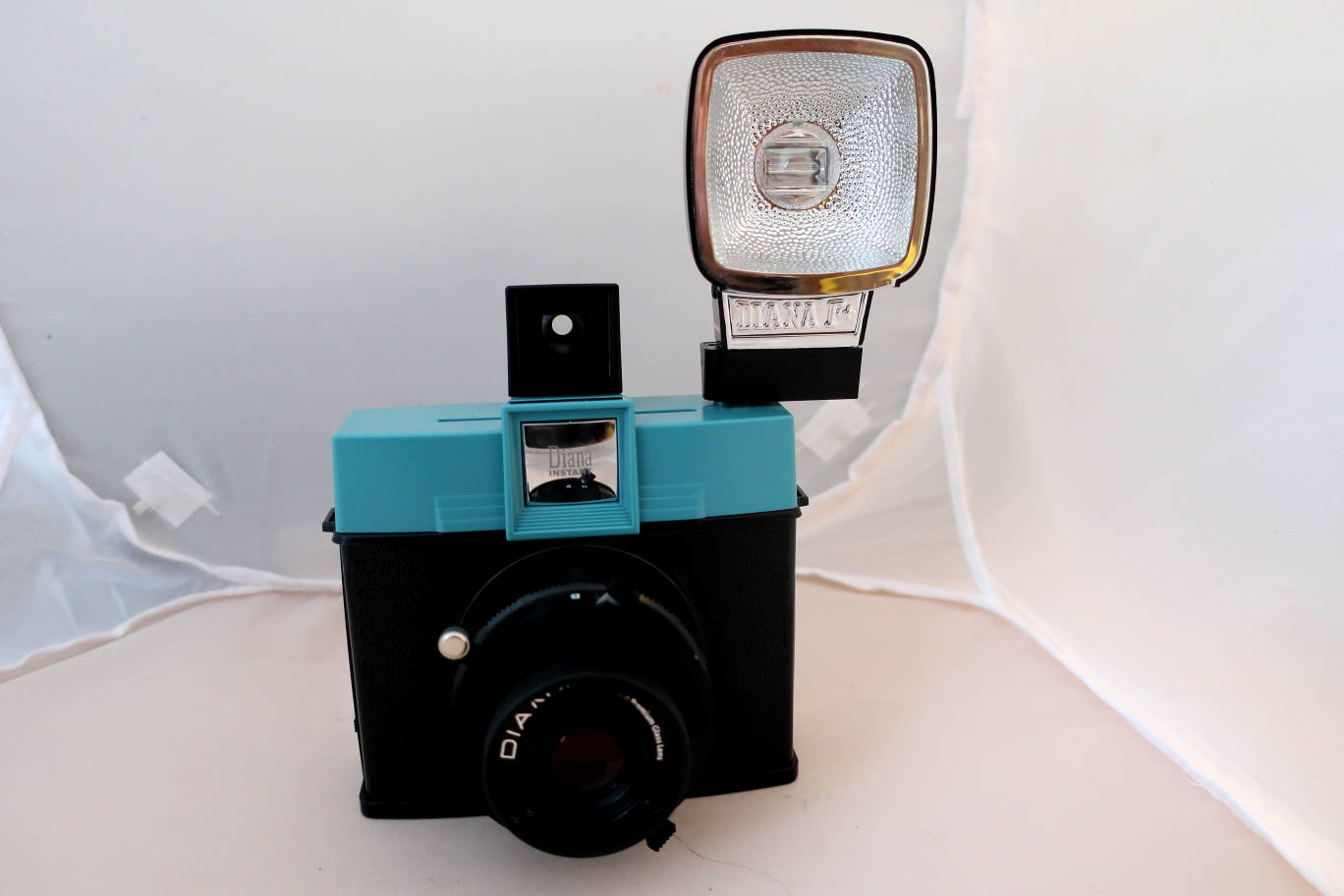

Camera with adapter and Diana flash.

jpg/diana_instant_square_IMG_1142.JPG
Camera with hot shoe adapter and ordinary flash.

Some pictures taken with the camera, all ordinary shutter setting (N):

jpg/diana_instant_square_IMG_20181130_1002.jpg
Street on a late november day, "cloudy" setting. 75mm plastic lens. A bit overexposed

jpg/diana_instant_square_IMG_20181130_1003.jpg
Street on a late november day, "cloudy" setting. 75mm glass lens. A bit overexposed. Better sharpness in my opinion.

jpg/diana_instant_square_IMG_20181130_1004.jpg
Same photo, "sunny to cloudy" setting.

jpg/diana_instant_square_IMG_20181130_1005.jpg
Veranda, 2m, F11, "cloudy". Quite some vignetting.

jpg/diana_instant_square_IMG_20181130_1006.jpg
Veranda, 3m, F11, "cloudy". Quite some vignetting.

jpg/diana_instant_square_IMG_20181130_2001.jpg
Street, 20mm fisheye, "sunny to cloudy" setting (F19)
, full fisheye effect, good sharpness.

jpg/diana_instant_square_IMG_20181130_1010.jpg
Street, 38mm super wide, F19, good sharpness, better than on an ordinary Diana, some vignetting.

jpg/diana_instant_square_IMG_20181130_1009.jpg
Street, 55mm wide,
F19, good sharpness, better than on an ordinary Diana.

jpg/diana_instant_square_IMG_20181130_1008.jpg
Street, 75mm standard (glass),
F19, good sharpness.

jpg/diana_instant_square_IMG_20181130_2002.jpg
Street, 110mm soft telelens,
F19,  soft, as indicated, but much better than on ordinary Dianas, vignetting.

jpg/diana_instant_square_IMG_20181130_2004.jpg
Christmas decoration, 55mm and close-up lens, ca. 15 cm distance, F11.

jpg/diana_instant_square_IMG_20181130_3001.jpg
Interior, Diana flash, F32, 3m, some vignetting.

jpg/diana_instant_square_IMG_20181130_3002.jpg
Interior, External flash, F32, 3m, vignetting.

jpg/diana_instant_square_IMG_20181130_3004.jpg
Veranda, F32, 3m, external flash, vignetting. A wider flash would be better.


The camera gives good results for a camera with cheap plastic lenses. There is nearly no vignetting at infinity focus and smaller apertures. The closer you focus the more vignetting you get. The Instax film allows photos on dull days with normal shutter speed. No problem on sunny days as there are more F-stops.

The shutter release works without the camera switched on. If you forgot to switch the camera on and have the shutter already released, no problem. Switch the camera on, cover lens and release again, the photo ejects. Be cautious if you put the camera on a flat surface, e.g. for putting a flash. The aperture lever sticks out and may be moved to another setting inadvertently.

The camera is easy to use. Pictures are fine. A nice new Diana camera.. Instant fun.
